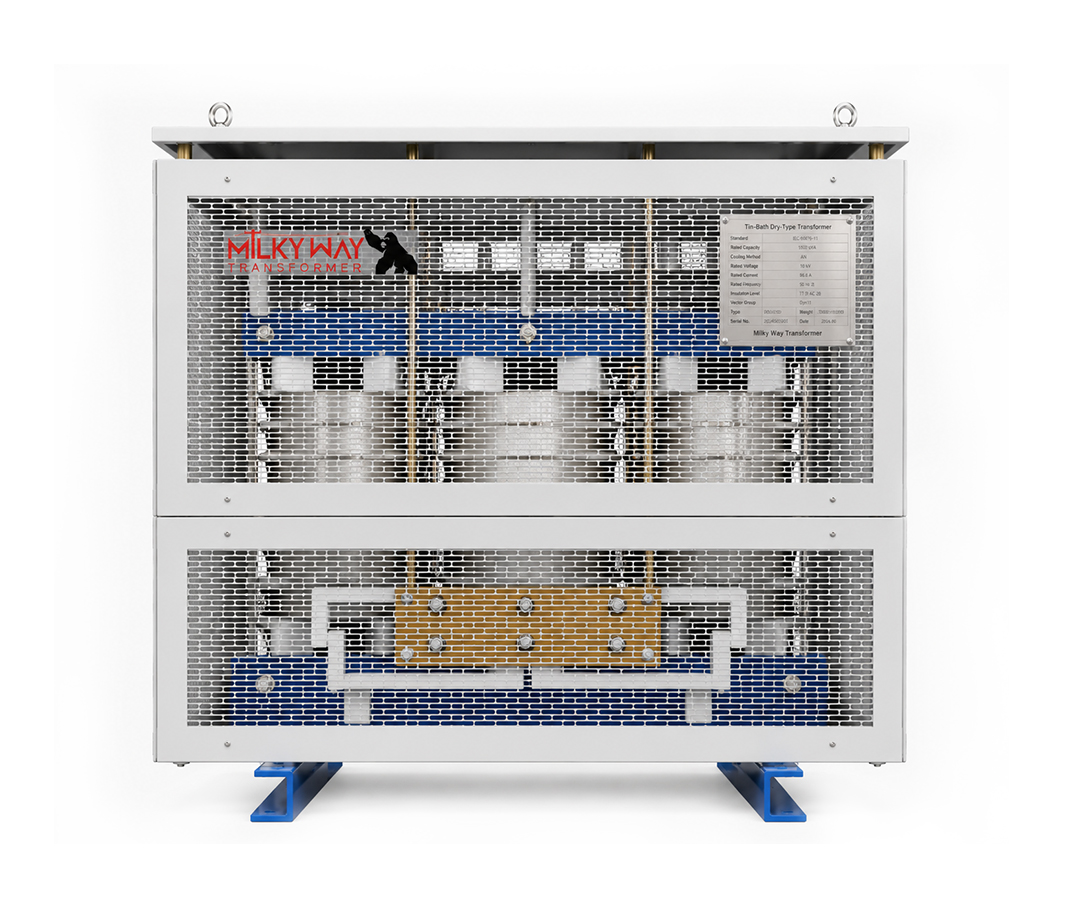

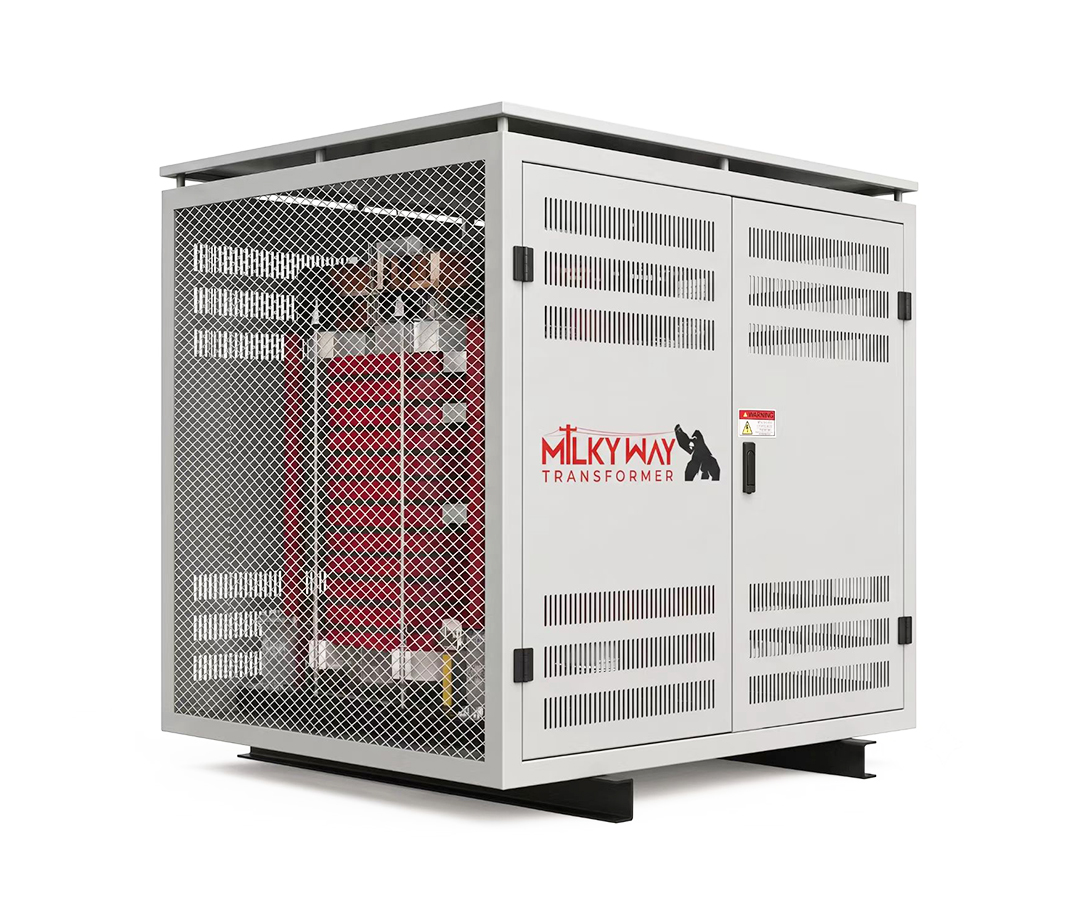

Tin Bath Dry Type Transformer

Tin bath dry-type transformers are a core Milky Way product for float glass production, supplying low-voltage power matched to the heating elements in each tin bath zone. They serve float and photovoltaic glass production lines, with single-phase or three-phase arrangements selected around zone power, element voltage and control requirements. New installations and cold-repair projects can be configured for the actual process and installation interfaces.

Consult Now (+86) 0510-87979779

Scope of application

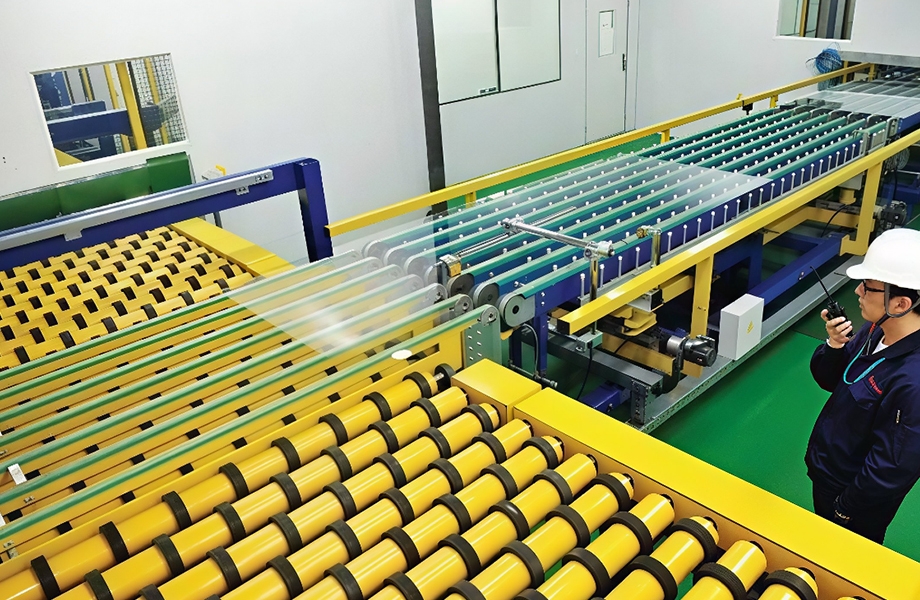

Float glass tin bath electric heating

Used for the heating system of tin bath in float glass production line, providing the required power for electric heating elements, and cooperating with power regulating equipment for temperature control.

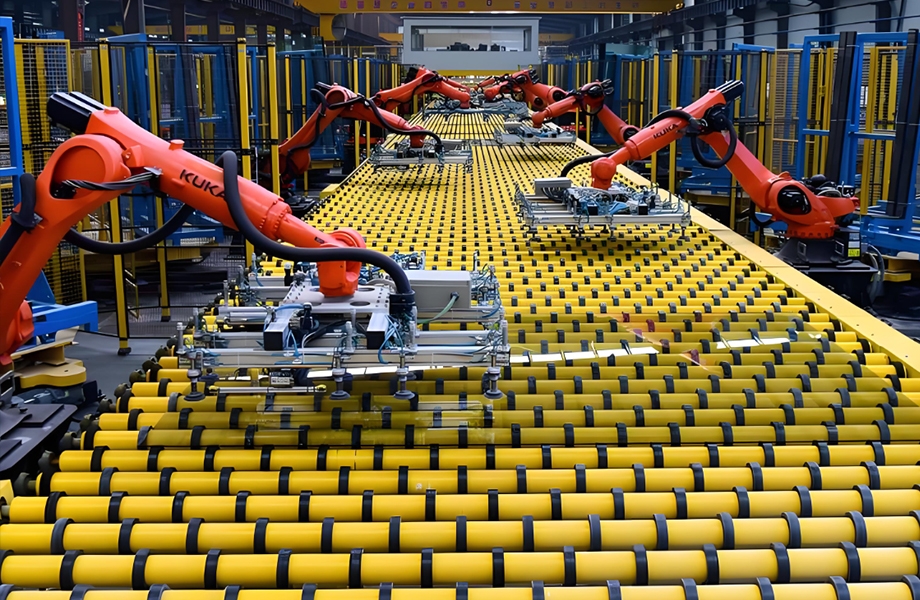

Electronic glass float forming

Suitable for electronic glass production lines using float glass technology, power supply is configured according to the load requirements of each heating zone in the tin bath to serve the glass forming process.

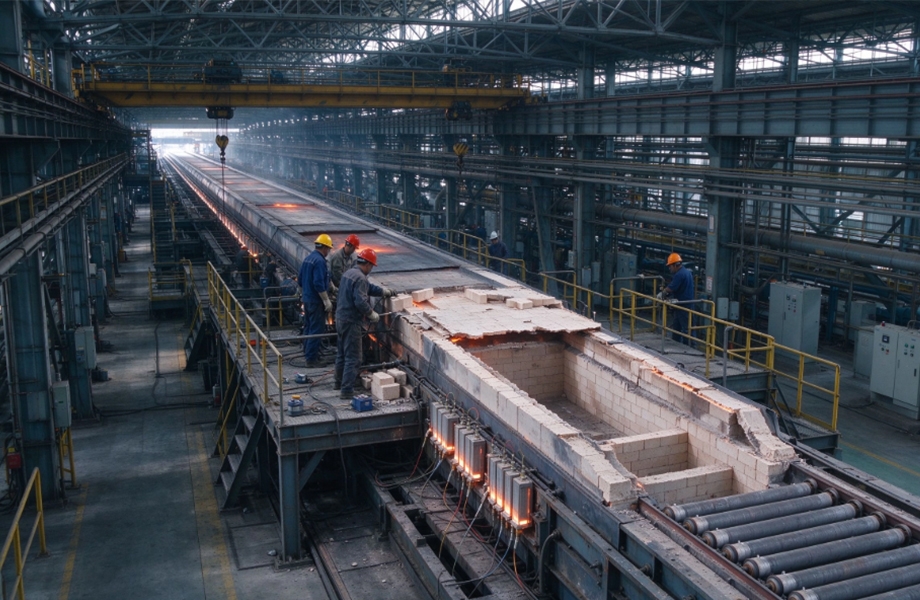

Tin bath cold repair and production line renovation

Suitable for tin bath cold repair, heating system update, and production line renovation projects, matching replacement solutions with existing equipment interfaces, heating elements, and installation conditions.

Product description

Specialized power supply for tin bath heating: designed for tin bath electric heating loads, configured according to the power, voltage, and current requirements of each heating zone, and used in conjunction with a power regulation system.

Multi level voltage matching load: Multiple output voltages can be set to meet the voltage requirements of heating elements such as silicon carbide rods at different stages of use, with specific levels determined according to process requirements.

Heat resistant insulation and ventilation heat dissipation: using heat-resistant insulation materials and impregnation processes, combined with the design of iron core and winding ventilation ducts, to meet the heat dissipation requirements of the tin bath site; Auxiliary air cooling can be configured as needed.

High current connection and on-site adaptation: Adopting winding and lead out structures suitable for high current loads, it is easy to connect the heating circuit busbar and can be customized according to installation space and wiring direction.

Product features

safe and reliable

Oil free, with strong fire resistance, eliminating the risk of oil leakage; Capable of withstanding short-circuit current and overvoltage, and adapting to harsh environments.

Eco-design

Using environmentally friendly materials, low noise and no pollution, to assist in the construction of a green power grid.

Excellent heat dissipation performance

Efficient cooling system ensures that the equipment maintains low temperature during long-term operation, effectively extending the service life of the equipment.

Convenient operation and maintenance

Humanized design, simple operation, convenient and fast daily inspection and maintenance, significantly reducing operating costs.

Durable and sturdy structure

Durable shell design, impact resistance, corrosion resistance, able to adapt to various complex and harsh working environments.

Convenient and worry free operation and maintenance

Modular structure design, supporting quick disassembly and assembly, combined with intelligent monitoring system, making operation and maintenance work more worry free and effortless.

Technical parameters

Model number	Rated capacity(KVA)	phase number	Rated voltage		Connection group designation	loss(W)		No load current%	Impedance voltage%	Outer limit size(mm)
Model number	Rated capacity(KVA)	phase number	once(V)	second time (V)	Connection group designation	no-live load	short circuit	No load current%	Impedance voltage%	Length x Width x Height
DG-10/0.5	10	1	220.380	Choose freely according to user requirements	Iio	90	360	3.8	3.5	400×350×560
DG-15/0.5	15	1	220.380		Iio	110	440	3.8	3.5	420×350×580
DG-20/0.5	20	1	380		Iio	140	580	3.5	3.5	450×350×600
DG-30/0.5	30	1	380		Iio	160	670	3.1	4	450×380×650
DG-40/0.5	40	1	380		Iio	180	810	2.8	4	500×380×700
DG-50/0.5	50	1	380		Iio	200	900	2.6	4	600×400×700
DG-60/0.5	60	1	380		Iio	240	1080	2.3	4	650×400×750
DG-80/0.5	80	1	380		Iio	320	1440	2.1	4	650×420×780
DG-100/0.5	100	1	380		Iio	360	1620	1.9	4	700×450×800
SG-20/0.5	20	3	380		D.y11	160	640	4	3.8	570×320×500
SG-30/0.5	30	3	380		D.y11	220	980	3.6	3.8	630×350×500
SG-35/0.5	35	3	380		D.y11	280	1160	3.2	3.8	650×350×550
SG-50/0.5	50	3	380		D.y11	380	1800	2.8	4	680×380×550
SG-80/0.5	80	3	380		D.y11	480	2160	2.3	4	800×400×550
SG-100/0.5	100	3	380		D.y11	560	2520	2.1	4	900×400×600
SG-120/0.5	120	3	380		D.y11	620	3000	1.7	4	950×450×600
SG-150/0.5	150	3	380		D.y11	700	3500	1.5	4.5	1020×450×700
SG-180/0.5	180	3	380		D.y11	760	4200	1.5	4.5	1050×500×750
SG-200/0.5	200	3	380		D.y11	820	5400	1.3	4.5	1050×500×800
SG-250/0.5	250	3	380		D.y11	920	6000	1.2	4.5	1150×550×900
SG-315/0.5	315	3	380		D.y11	1120	6800	1.1	4.5	1200×550×950
